Products
engine
portable generators
industry genset
water pump

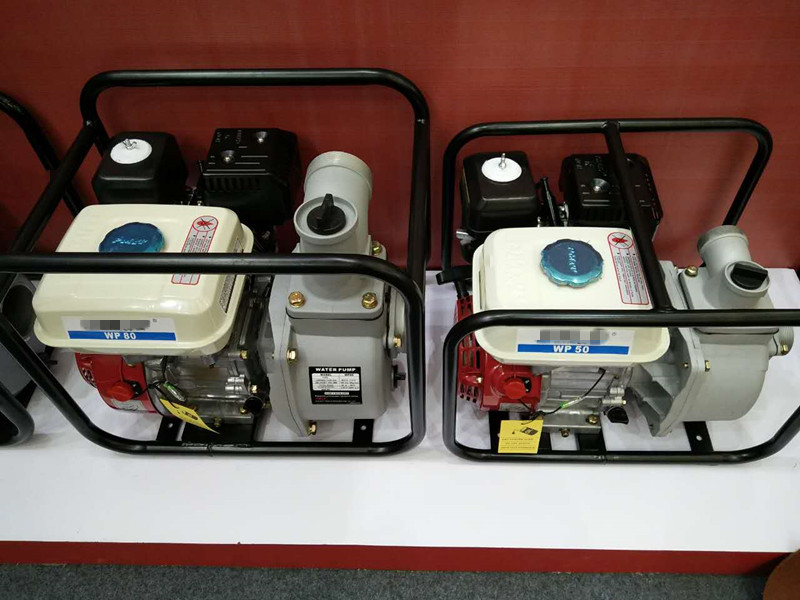

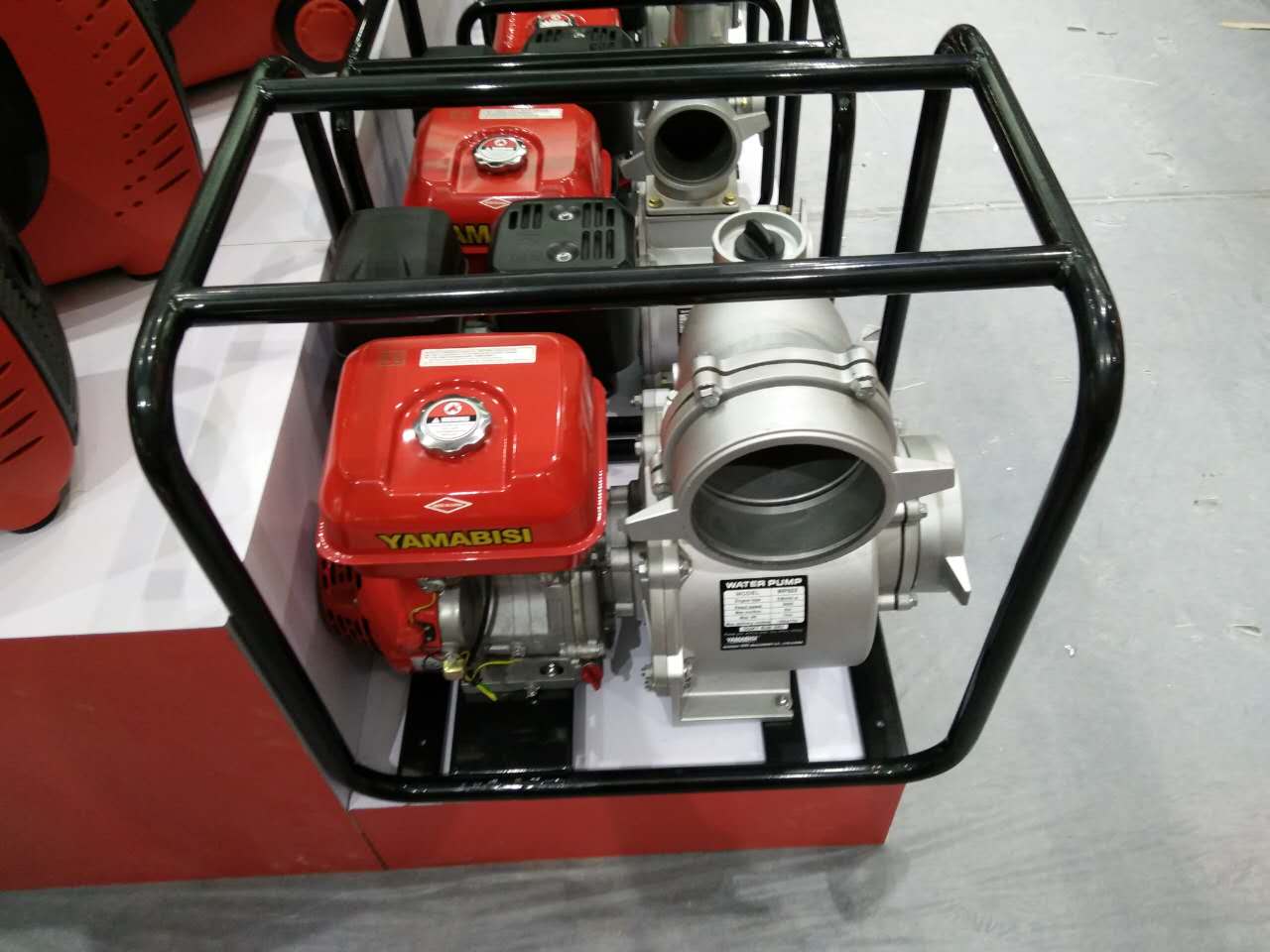

water pump powered by gasoline engine
Model |
WP20X |
WP30X |
WP40X |
Type |
General-purpose Gasoline pump |
||
Suction, dischare port dia.(in) |
2 |
3 |
4 |
Max.capacity(m3/h) |
36 |
60 |
96 |
Max.head (m) |
26 |
31 |
25 |
Self-prming time(s/4m) |
70 |
120 |
180 |
Max.Suction head (m) |
8 |
8 |
8 |
net weight(kg) |
25 |
27 |
46 |
Dimensions(mm) |
490x380x410 |
530x380x460 |
620x520x600 |
Engine model |
YM168FP |
YM168FP |
YM177FP |
Cont.output (KW) |
4.0（5.5） |
4.8（6.5） |
5.8（8） |
Displacement(cc) |
163 |
196 |
270 |
Rated speed(r/min) |
3600 |
3600 |
3600 |
Start method can be manual start or electric start.
tank can be runing for 3hours or 8hours.
-----------------------------------------------------------------------------------------------
high pressuer water pump(fire fighting)
Model |
HP15X |
HP20X |
Type |
high pressure Gasoline pump |
|
Suction, dischare port dia.(in) |
1.5" |
2" |
Max.capacity (m3/h) |
24 |
30 |
Max.head (m) |
50 |
50 |
Self-prming time(s/4m) |
3600 |
3600 |
Max.Suction head (m) |
8 |
8 |
Dry weight(kg) |
29 |
30 |
Dimensions(mm) |
560x400x420 |
560x450x480 |
Engine model |
YM168F-2 |
YM168F-2 |
Cont.output (KW) |
4(5.5) |
4(5.5) |
Displacement (cc) |
196 |
196 |
Rated speed(r/min) |
3600 |
3600 |
Start method can be manual start or electric start.
tank can be runing for 3hours or 8hours.
